Scope of application

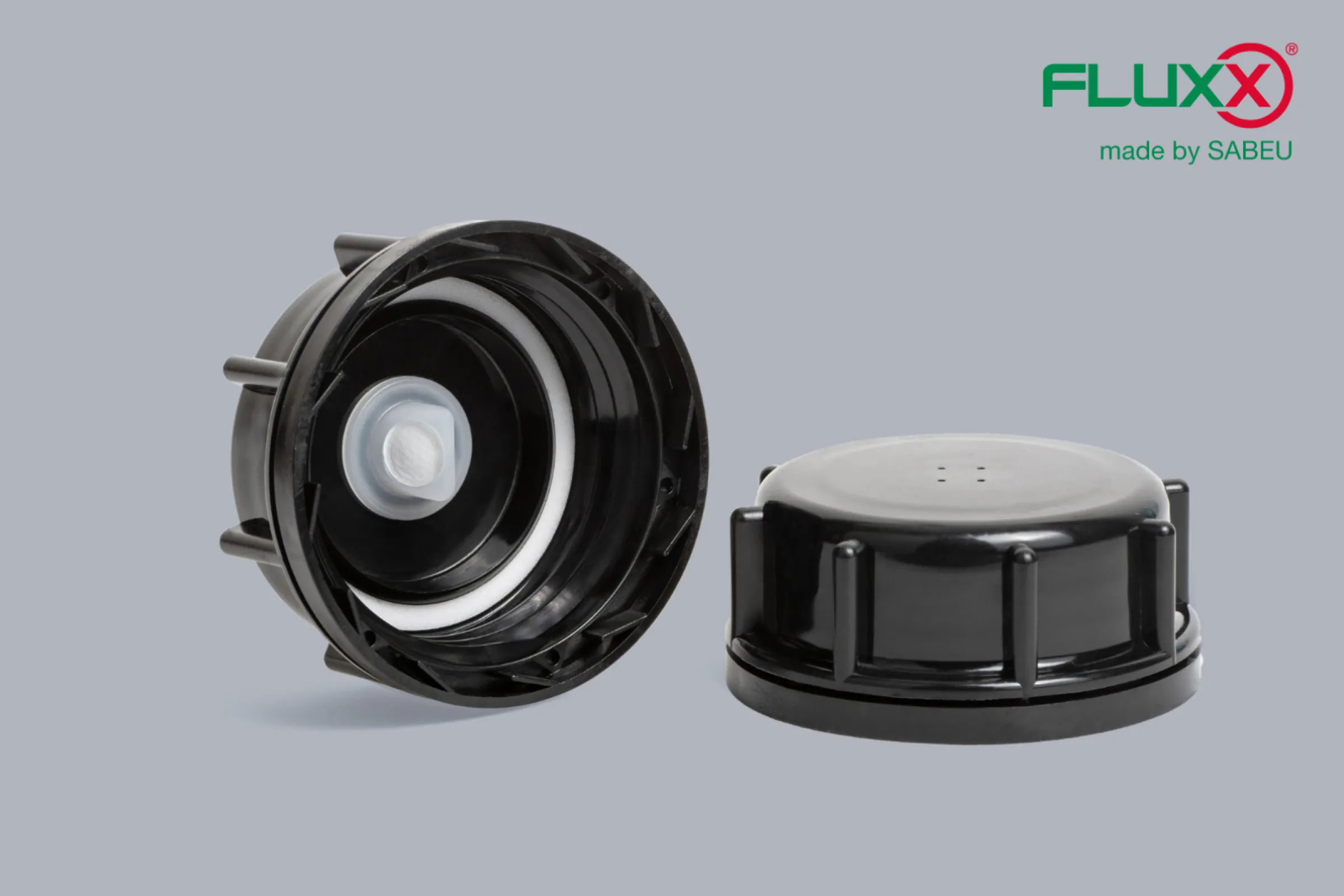

Our unique FLUXX® Vented Caps are equipped with the SAVE System and are available for common thread sizes with DIN 45, 51 and 61. For the venting system we are using high-quality membranes, which enable a continuous pressure compensation with gaseous liquids, to prevent containers from swelling and collapsing. The membranes are hydrophobic as well as oleophobic, and as a result, they are not moistened even by liquids with a low surface tension.

SAVE Venting System

The SAVE (SAfety VEnt) has a wedge-like design and the membrane is welded on at a 60° angle. This enables the liquids to drain off immediately, leaving the membrane unobstructed and air permeable. In addition, no splash protection is needed as the liquid flows past the beveled membrane, should a canister fall over, rather than hitting it head-on.

Benefits

• Continuous pressure compensation

• Prevent containers from swelling and collapsing

• Reliable protection against leaks

• Drip-off edge for a rapid re-ventilation after contact with liquids

• Ready to use – venting component combined with the cap

• Declaration of food conformity
