More than a lump detector: complete full surface inspection and diameter measurement of tubes, hoses and cables

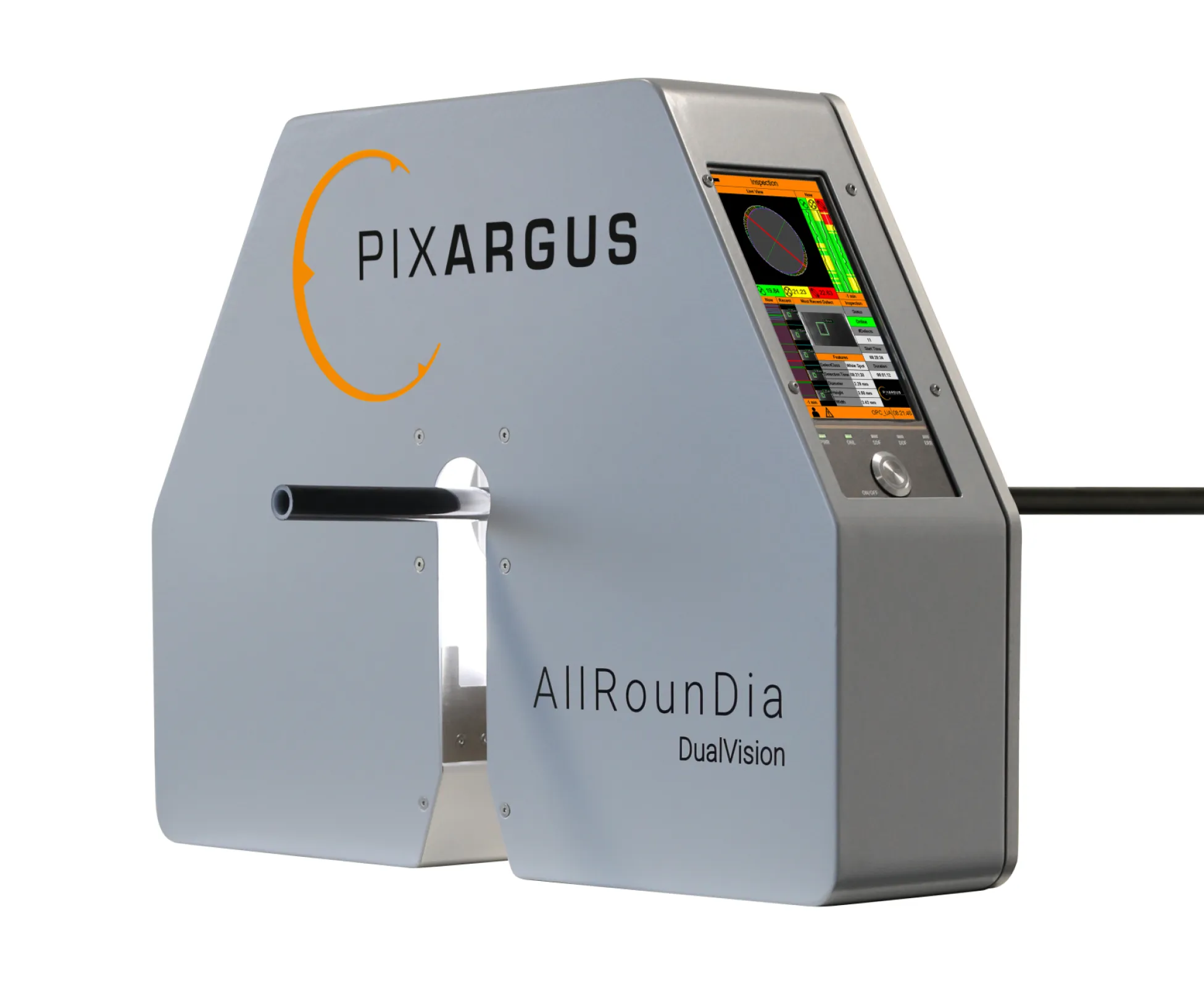

AllRounDia DualVision combines PIXARGUS’ vast know-how and expertise in surface inspection and measurement of diameter and ovality in an ideal way: the hardware and software of PIXARGUS’ highly successful ProfilControl 7 technology have been optimized and adapted to the measurement of products of simple, round contours. The result is a downsized system that measures both the surfaces and contours of tubes, hoses and cables with one single sensor head - gaplessly, all-round and highly cost-saving.

AllRounDia DualVision convinces with performing features:

• 360° all-round technology instead of conventional 6-point measurement with blind areas

• True LED surface inspection – and diameter measurement at the same time!

• State-of-the-art measurement repeatability with a precision of 0.01 % FOV

• More than a lump detector: Additionally recognizes surface defects (such as grooves, cracks, blisters, inclusions, ...) and even colour flaws

• Intuitive operation - Via integrated 15-cm multi-touch screen or mobile via tablet

• Compact design and user-friendly hardware:  Fits everywhere and is ready to go in virtually no time

• Smart network links to production process through PC-based system of Industry 4.0 standard
